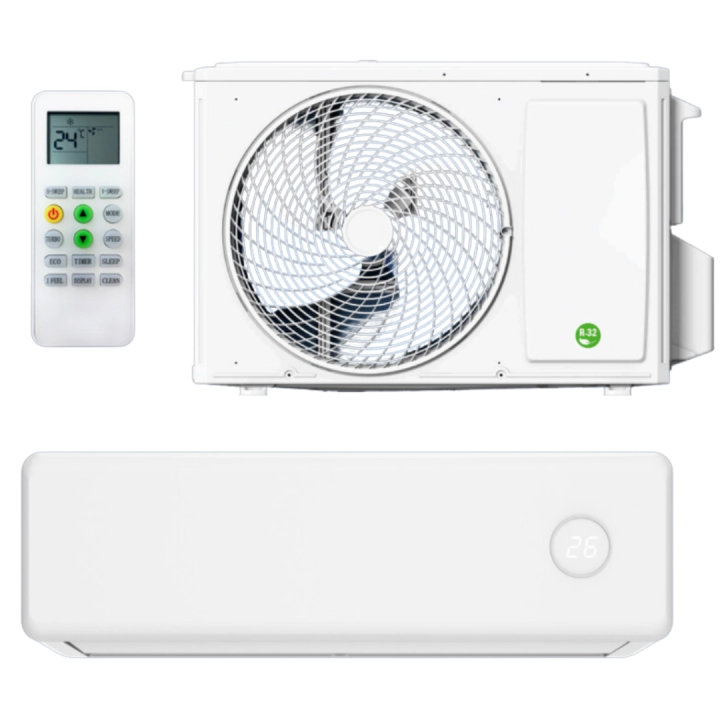

Split Inverter OEM 3.5 Kw (3010 Frigorias)

Split Inverter OEM is designed with DC Inverter compressors and fans, allowing precise control of the temperature and greater energy efficiency. Thanks to its SEER A++ and SCOP A+ classification, this system reduces significantly reduce energy consumption, which translates into savings on your electricity bills. Besides, his R-32 refrigerant is more ecological and offers a lower environmental impact, contributing to a more environmentally friendly future. sustainable.

The Golden Fin protection of the OEM Split Inverter ensures greater durability of the equipment, protecting it against corrosion and extending its useful life. This feature is especially important in humid or saline, where other air conditioning systems could deteriorate more quickly. With the turbo button, you can reach the desired temperature in record time, ideal for those intensely hot days.

The OEM Split Inverter's silent mode and 24-hour timer allow you to enjoy a quiet environment. Quiet and comfortable at any time of the day or night. The auto-restart function ensures that the system automatically resume operation after a power outage, while self-cleaning keeps equipment free of dust and bacteria, improving indoor air quality.

Finally, the OEM Split Inverter offers the option of Wi-Fi control, allowing you to adjust the temperature and settings. equipment functions from your smartphone or tablet, even when you are not at home. With a three-year warranty, You can trust this air conditioner to provide you with reliable, long-lasting performance. Invest in the Split OEM inverter and enjoy a perfect climate at all times.

PERFORMANCE:

Cooling capacity:

• KW capacity 3.5(0.66-3.7)
• Btu/h 10236(2252-12624)
• Consumption W 1190(250-1600)
• Current A 5.5(1.1-9.6)
• SEER W/W 6.1
• EER W/W 2.94
• Energy classification Cold A++
• Annual consumption kWh 175

Heating capacity

• KW capacity 3.5(0.66-3.8)
• Btu/h 10236(2252-12966)
• Consumption W 950(250-1600)
• Current 4.4(1.1-10.0)
• SCOP W/W 4
• COP 3.68
• Energy classification A+
• Annual consumption kWh 842

FEATURES

Indoor unit

• Sound power (H/M/L/S) dB(A) 52/48/43/37
• Sound pressure (H/M/L/S) dB (A) 42/38/34/23
• Air flow (H/M/L/S) m³/h 550/500/450/400
• Temp. range selectable ºC 16 - 32

Outdoor unit

• Sound power dB 64
• Sound pressure dB 52
• Air flow m³/h 1650
• Temp. operating temperature ºC -15~53
• Rotatory/ GMCC type/brand compressor

Coolant

• Type/Load R32/kg 0.6
• Additional load >5 m g/m 15

DIMENSIONS AND WEIGHT

Indoor unit

• Net dimensions (W×H×D) mm 805 x 270 x 197
• Gross dimensions (W×H×D) mm 864 x 331 x 265
• Net/gross weight kg 7.5/8.5

Outdoor unit

• Net dimensions (W×H×D) mm 665 x 530 x 260
• Gross dimensions (W×H×D) mm 768 x 570 x 324
• Net/gross weight kg 22.9 / 26.2

Connections

• Liquid-Gas Inch. -1/4" - 3/8"
• Max. length m 20
• Maximum slope. m 15

Electrical connections

• Internal power supply mm with communication
• External supply mm 2 x 2.5 + T
• Interconnection (shielded) mm 4 x 2.5 + T
