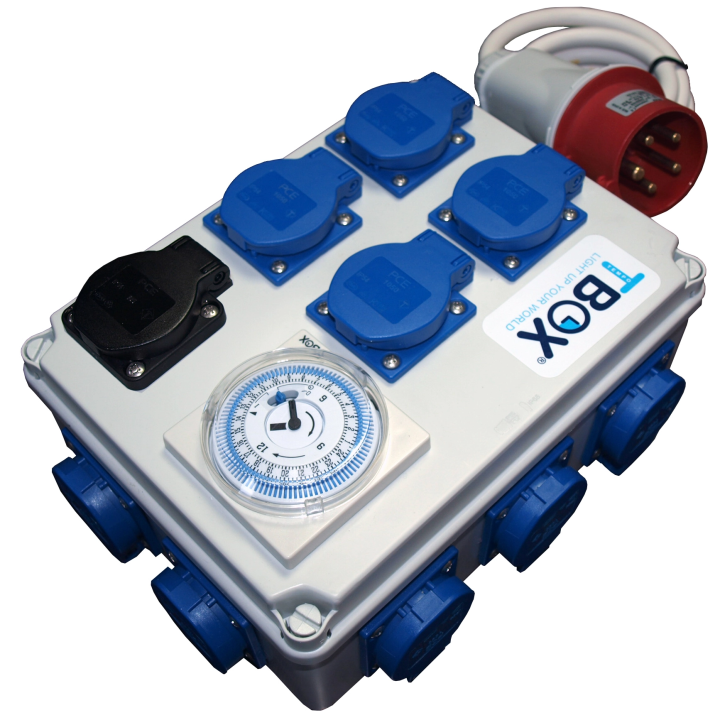

Tempo Box 12H Timer (12 Outputs + Heating Socket) - 380V

TBox 12H, is a timer box that can manage a maximum of 12 630W accessories, 12 600W accessories, 16 accessories of 400W, 24 accessories of 315W or 6 accessories of 1,000W

The time programming is carried out through an analog timer that allows planning the time of work of the connected accessories with a minimum interval of 15 minutes.

The timer has a transparent cover that protects it from dust and dirt, preventing your gears may be clogged by a possible accumulation of debris; the useful life of the apparatus.

Tempobox® timers are the most valued electrical control units by growers around the world. world. They are safe and reliable timers that will allow you to optimize the operating time of the devices of your crop for better energy efficiency.

Installation and Use:

Choose a location near an independent power line. At the bottom of the tempo box you will find a 230 volt power cable with ground connection. It is important that each power line has a protection ground. Once this is done you can connect the accessories to each of the TBox sockets. When you have connected accessories, remove the plastic cover from the watch. In it you will find a switch with three positions:

• I= Steady On
• Ø=On at selected time
• OR= Off

I turned the switch to the on position at the selected time. Set the time you want the equipment is turned on by activating the clock pins, each pin is equivalent to fifteen minutes.

Warranty: All Tempobox® products have a one-year manufacturer's warranty.

Technical Characteristics

• Dimensions: 241 x 180 x 95 mm. (Length x Width x Height)
• Required current: 380 V / 50 Hz.
• Maximum power: 7,560W.
• Maximum auxiliary socket power: 2,400
• Analog timer with a minimum maneuver of 15 minutes.
• Time reservation 48 h.
• IP20 protection.
• Working temperature: 5-40ºC/Humidity 40-80%
