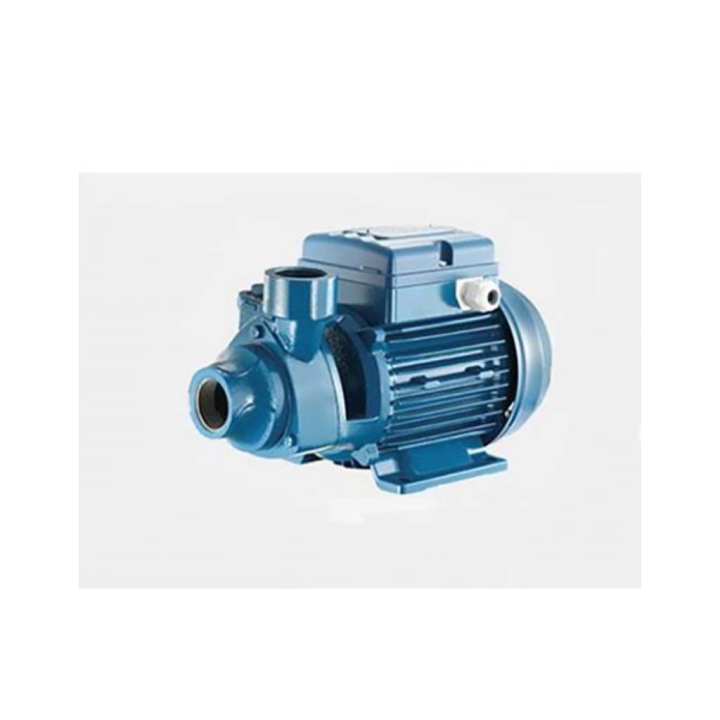

Peripheral Pump PV10E 1Cv (230V Single Phase)

Peripheral front suction volumetric pump suitable for small domestic installations and for modest industrial applications.

They are characterized by an excellent relationship between the performance they offer and the power required.

Characteristics:

Cast iron pump body. brass impeller and AISI 316 stainless steel shaft.

230V single-phase models with thermal protection.

Liquid temperature range from 0║C to 90║C

Suction / discharge connection 1.

Technical data:

- Model: PV10E

- Power: 1 CV

- Intensity: 5.2 A

- Flow (m3 / h): ............... 0.3 ... 0.6 ... 1.2 ... 1.8 ... 2.4 ... 3

- Manometric height (m): 61 ... 56 ... 48 ... 39 ... 31 ... 18
